design and copyright by Daniel Libeskind
12 meters high
740 mq gross floor area (exhibition, service & VIP levels)
130 mq roof terrace
The corporate pavilion for Vanke China explores key issues related to the theme of the Expo Milano 2015, “Feeding the Planet, Energy for Life”. The concept for the Vanke Pavilion incorporates three ideas drawn from Chinese culture related to food: the shi-tang, a traditional Chinese dining hall; the landscape, the fundamental element to life; and the dragon, which is metaphorically related to farming and sustenance. All three of these concepts are incorporated in the Vanke Pavilion’s exhibition, architecture and program.

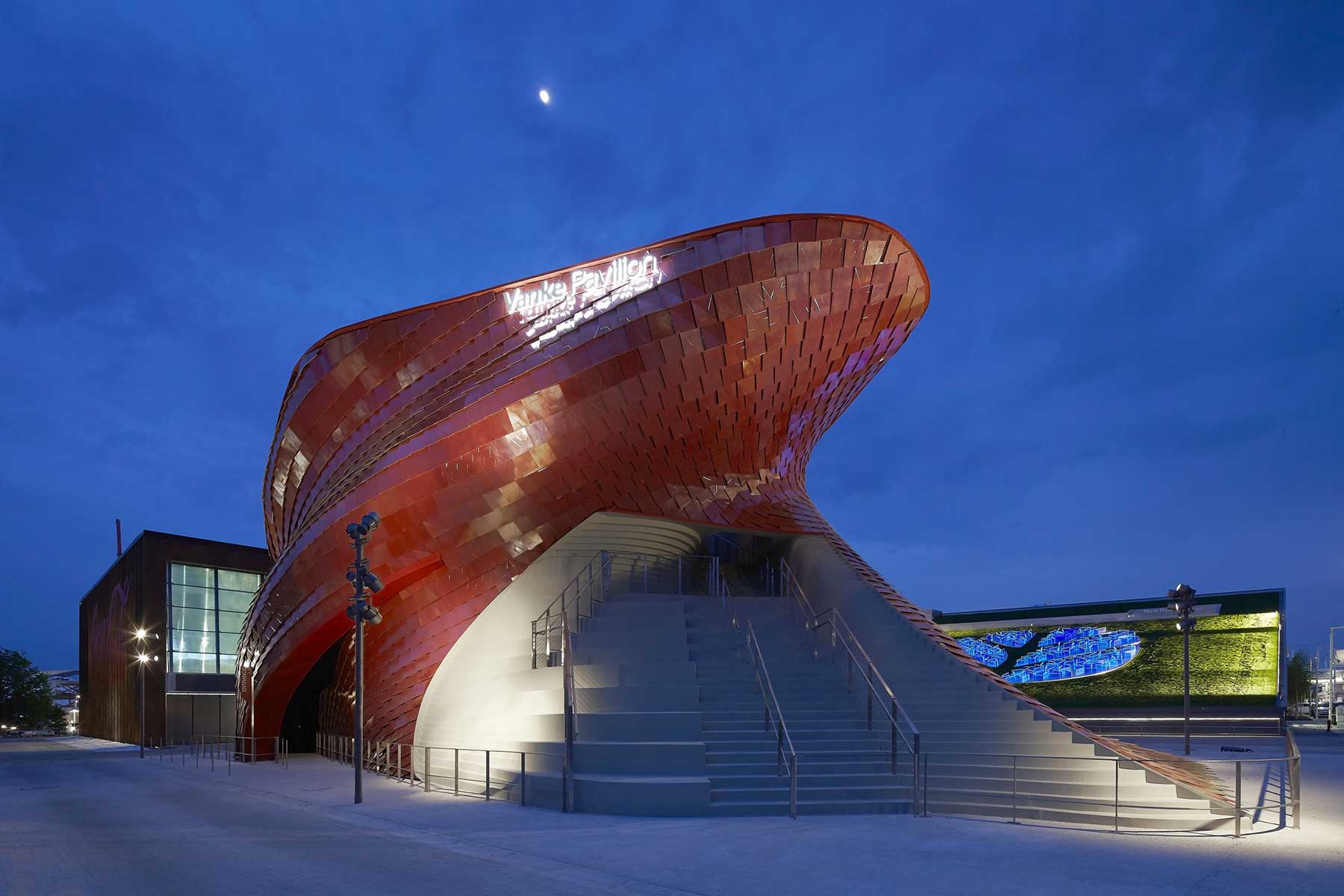

Situated on the southeast edge of the Lake Arena, the 800-square meter pavilion appears to rise from the east, forming a dynamic, vertical landscape. The design features a sinuous geometrical pattern that flows between inside and outside. A grand staircase, clad in warm grey concrete, carves through the red serpentine form and guides visitors to the upper level. A roof-top observation deck with a planted garden will provide stunning views of the lake and near-by Italian pavilion.

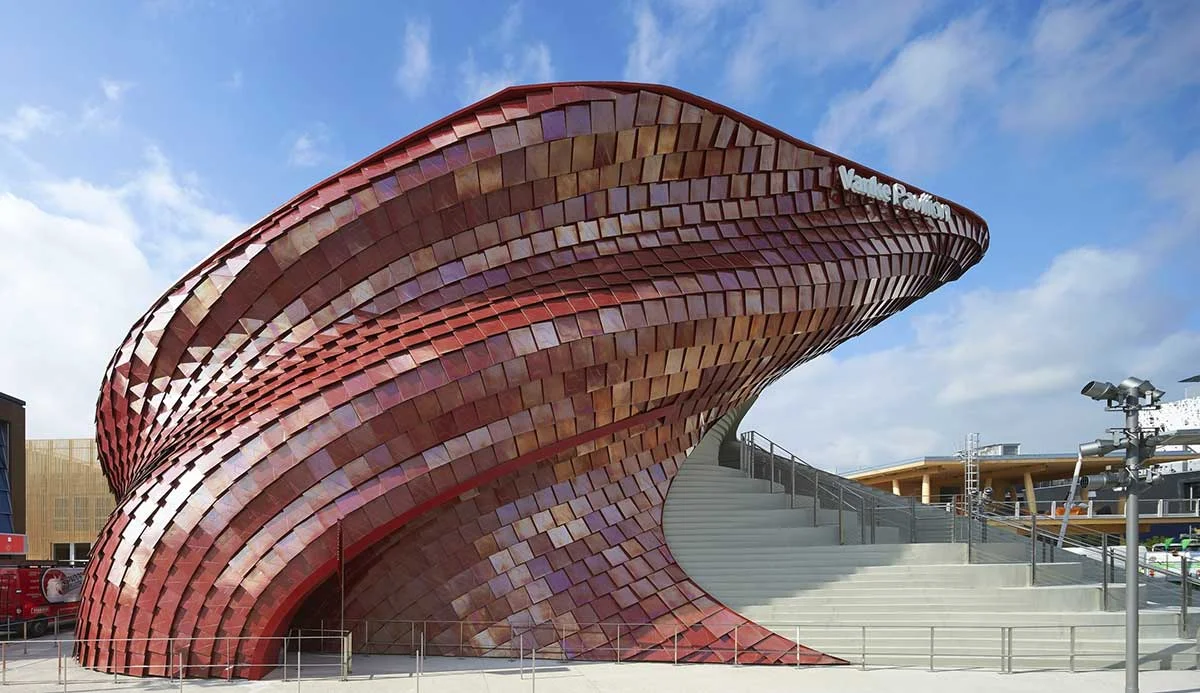

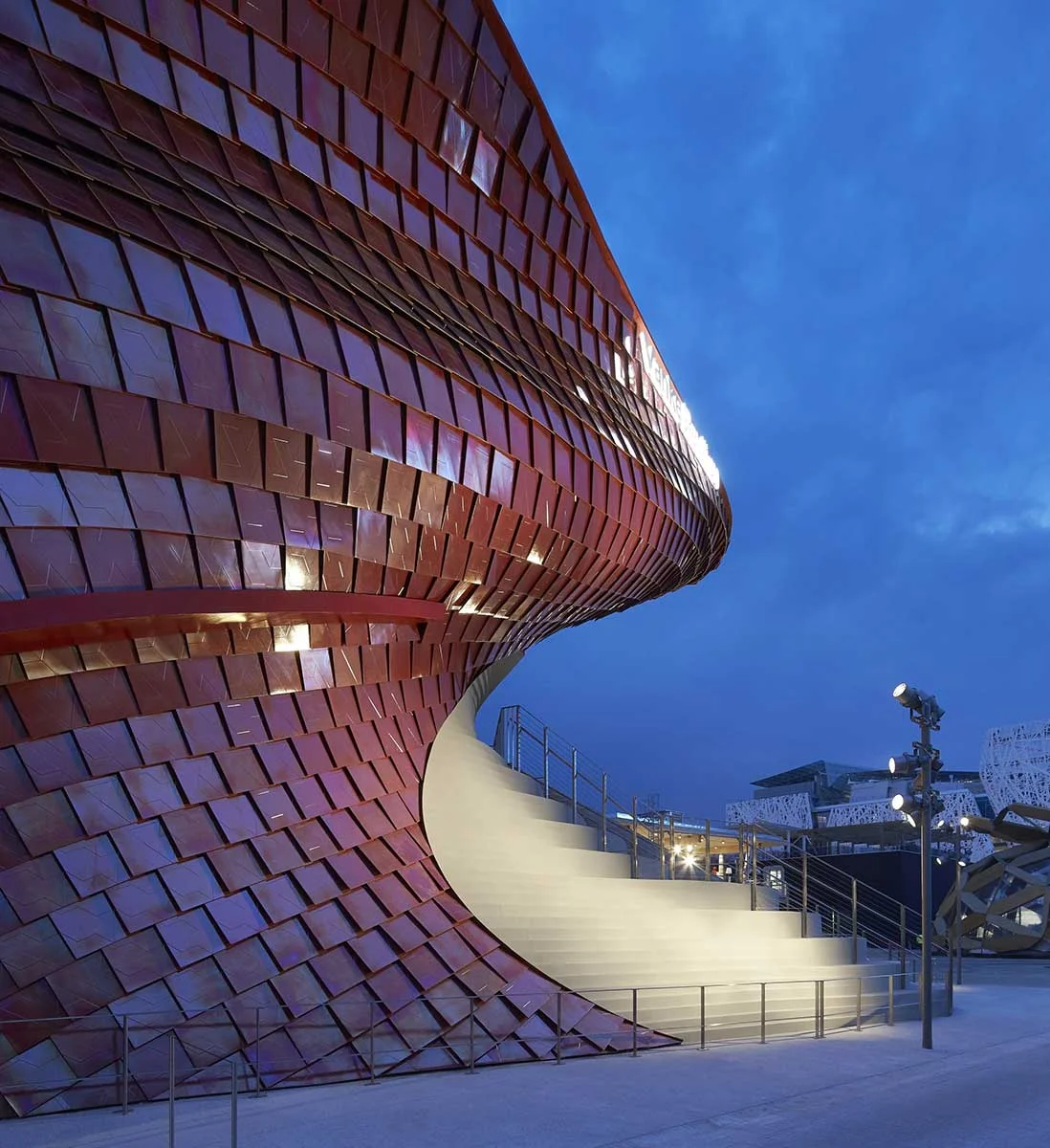

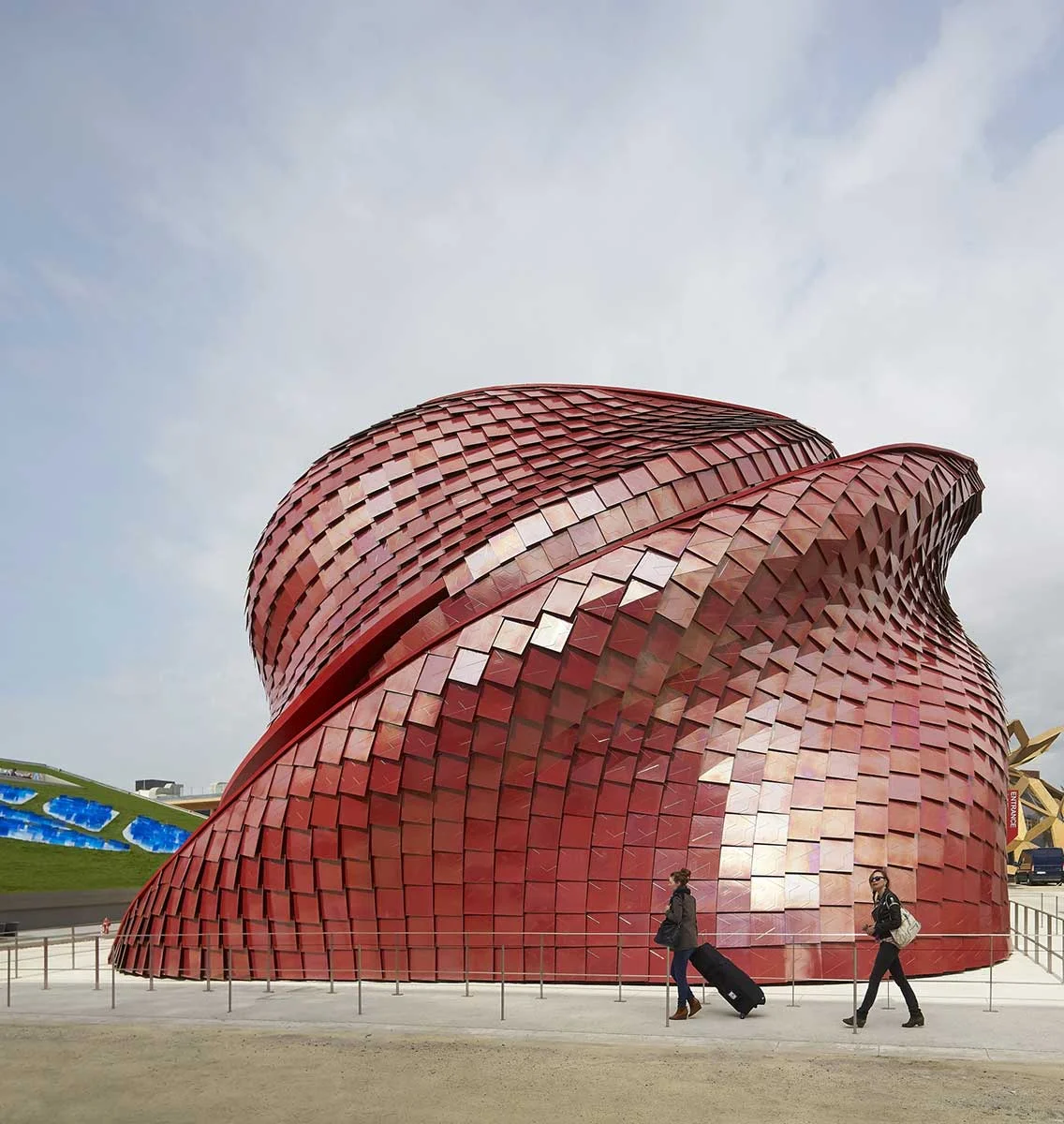

The pavilion is clad in more than 4,000 red metalized tiles that Libeskind designed with the Italian company Casalgrande Padana. The geometric ceramic panels not only create an expressive pattern that is evocative of a dragon-like skin, but also possess highly sustainable self-cleaning and air purification properties. The three-dimensional surface is coated with a metallic coloration that changes as light and viewpoints shift. At times it will appear as deep crimson, then a dazzling gold, and even, at certain angles, a brilliant white. The tiles are installed with a state-of-the-art cladding support system that gives a rhythmic pattern and mathematical form to an otherwise supple, torquing shape. Two spiraling stairs, echoing the form, ascend the pavilion to the south, and to the north from the Lake Arena entrance, serving both as circulation and seating.

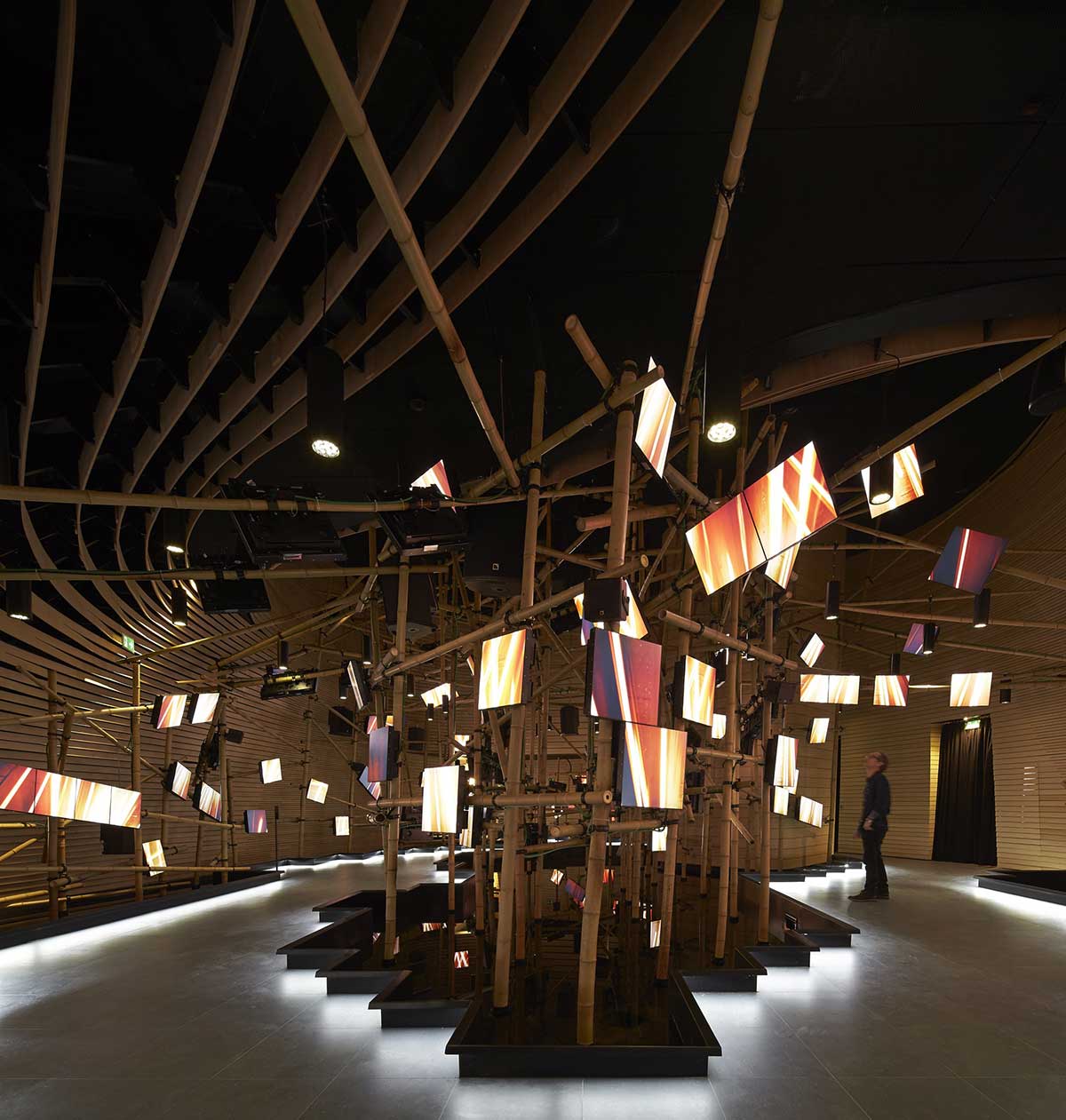

Inside the pavilion, visitors encounter an exhibition space filled with a constellation of 200 screens mounted to a matrix of bamboo scaffolding. The forest of screens and bamboo floats above a winding reflecting pool that borders the visitor pathway.
The pavilion is open in Milan, Italy from May 1 through October 31, 2015. After the Expo closes, Vanke will up-cycle all of the steel components and tiles in the pavilion.
